Description

This clamp meter means you can cope in any application environment, no matter how tight. The movable pincer arm can be fully retracted into the instrument, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. You have never been able to measure as conveniently as this in tight spots. The operation of the testo 770-1 clamp meter is also easier and more reliable than ever before. It automatically detects and selects AC/DC and other electrical parameters, such as resistance, continuity, diode and capacitance. In addition, you can also use it to measure the starting current. And the two-line display presents your readings clearly and distinctly.

USPs

Fully retractable pincer arm for maximum flexibility
Auto AC/DC
Fully retractable pincer arm for maximum flexibility
Measures the common electrical parameters

Delivery Scope

testo 770-1 TRMS clamp meter, including battery, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.

Downloads

Download Datasheet Instruction manual

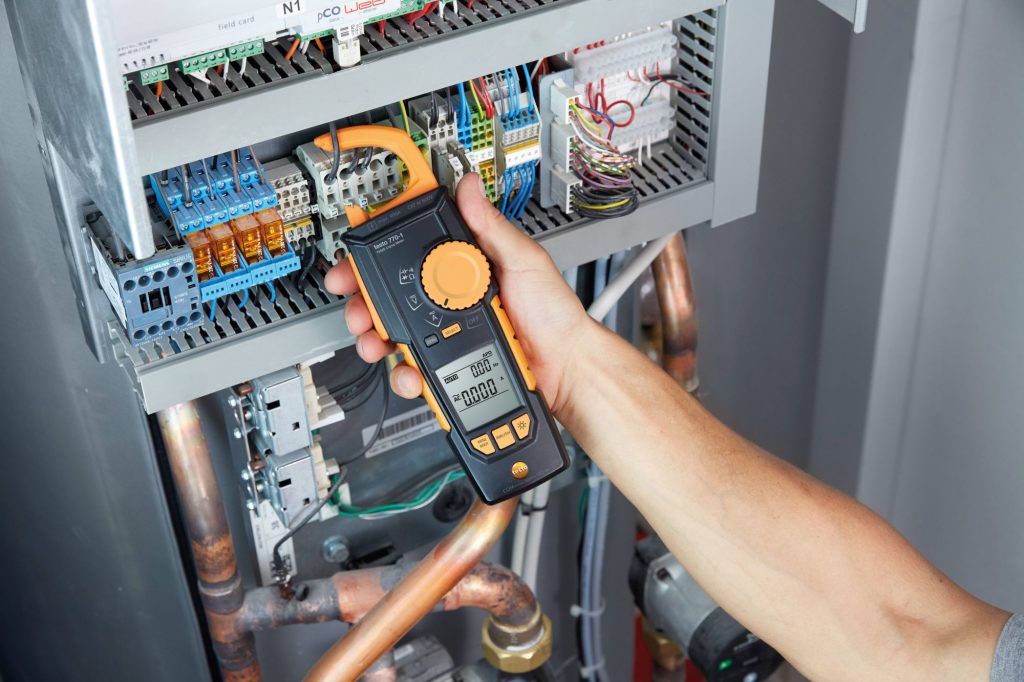

Application Image

Technical Details

DC voltage Measuring range 1.0 to 600.0 V
Resolution max. 1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC voltage Measuring range 1.0 mV to 600.0 V
Resolution max. 1 mV
Accuracy ± (1.0 % of mv + 3 Digit)
DC current Measuring range 0.1 to 400 A
Resolution max. 0.1
Accuracy ± (2 % of mv + 5 Digit)
AC current Measuring range 0.1 to 400 A
Resolution max. 0.1 A
Accuracy ± (2 % of mv + 5 Digit)
Resistance Resolution max. 0.1 Ohm
Measuring range 0.1 to 40.00 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance Resolution max. 0.01 nF
Measuring range 10 nF to 100.0 μF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency Measuring range 10 nF to 100.0 μF
Accuracy ±(0.1 % + 1 Digit)

General technical data
Operating humidity 0 to 80 %RH
Weight 378 g
Dimensions 249 x 96 x 43 mm
Operating temperature -10 to +50 °C
Product colour Black
Standards EN 61326-1; EN 61010-2-032; EN 61140
Battery type 3 AAA micro batteries
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Interface 2 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT IV 600V; CAT III 1000V
Authorizations CSA; CE
Internal_resistance 11 MOhm (AC / DC)
Instrument Measurement Functions Diode test yes
Continuity testing yes
Display ligthing yes
Hold yes
MinMax yes
True RMS yes
Inrush current measurement yes
Display (counts) 4,000
Autom. measurement parameter detection yes”
