Description

The testo 770-3 clamp meter is the ideal clamp amperemeter for demanding measuring tasks in tight application environments. The movable pincer arm can be fully retracted into the instrument. This enables the instrument to grab tightly packed cables in a particularly accurate way. In addition, more specialized applications can be handled using the clamp meter, such as starting current, power and µA measurements. The supplied temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately). The clamp amperemeter automatically detects and selects AC/DC and other parameters, such as resistance, continuity, diode and capacitance,. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display. In addition to this, the testo 770-3 offers a performance measurement function and can be connected via Bluetooth to the testo Smart Probes App. In the App, the measurement curve can be displayed as a graph on your smartphone/tablet and directly documented in the report.

USPs

Easy to operate thanks to the fully retractable pincer arm
Auto AC/DC and large two-line display
Easy to operate thanks to the fully retractable pincer arm
Bluetooth connection to your smartphone (with the testo Smart Probes App)

Delivery Scope

testo 770-3 TRMS clamp meter, including batteries, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.

Downloads

Download Datasheet Instruction manual

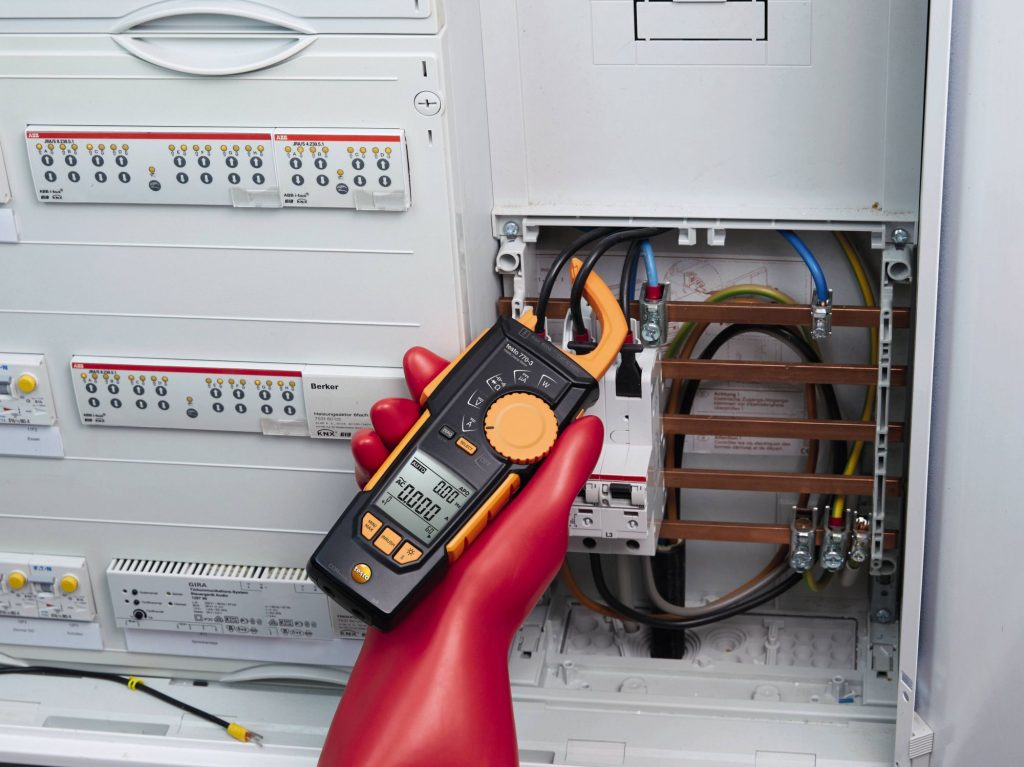

Application Image

Technical Details

Temperature – TC Type K (NiCr-Ni) Measuring range -20 to +500 °C
Accuracy ±1 °C (0 to +100 °C)
Resolution 0.2 °C
DC voltage Measuring range 1.0 to 600.0 V
Resolution max. 1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC voltage Measuring range 1.0 mV to 600.0 V
Resolution max. 1 mV
Accuracy ± (1 % of mv + 3 Digit)
DC current Measuring range 0.1 to 600.0 A (clamp), 0.1 to 600.0 μA (measuring cables)
Resolution 0.1 (clamp), 0.1 (measuring cables)
Accuracy ± (2 % of mv + 5 Digit) (clamp), ± (2 % of mv + n2{#0} ) (measuring cables)
AC current Measuring range 0.1 to 600.0 A (clamp), 0.1 to 600.0 μA (measuring cables)
Resolution 0.1 A (clamp), 0.1 μA (measuring cables)
Accuracy ± (2 % of mv + 5 Digit) (clamp), ± (1.5 % of mv + 5 Digit) (measuring cables)
Resistance Resolution max. 0.01 Ohm
Measuring range 0.01 to 60.0 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance Resolution max. 0.01 nF
Measuring range 2 nF to 60.00 mF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency Resolution max. 0.1 Hz
Measuring range 0.01 Hz to 9999 kHz
Accuracy ± (1 % of mv + 1 Digit)
Active Power Measuring range 0.1 W to 600 kW
Accuracy ± (5 % of mv + 5 Digit)
Resolution 0.1 W
Reactive Power Measuring range 0.1 to 600.0 kvar
Accuracy ± (10 % of mv + 5 Digit)
Resolution 0.1 var
Apparent Power Measuring range 0.1 VA to 600.0 kVA
Accuracy ± 1 Digit
Resolution 0.1 VA
Direct current DC Voltage Measuring range 0.1 W to 600.0 kW
Accuracy ± 1 Digit
Resolution max. 0.1 W
Power Factor Measuring range -1.00 to +1.00
Accuracy ± (10 % of mv + 5 Digit)
Resolution 0.01
General technical data Operating humidity 0 to 80.0 %RH
Weight 378 g
Dimensions 249 x 96 x 43 mm
Operating temperature -10 to +50 °C
System requirements requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour Black
Connectable probes 1 x temperature probe (adapter required for type K thermocouples)
Standards EN 61326-1; EN 61010-2-032; EN 61140
Battery type 3 AAA micro batteries
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Interface 2 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT IV 600V; CAT III 1000V
Authorizations CSA; CE
Internal_resistance 11 MOhm (AC / DC)
Instrument Measurement Functions Diode test yes
Continuity testing yes
Display ligthing yes
Hold yes
MinMax yes
Power Measurement yes
Temperature measurement with adapter yes
True RMS yes
Inrush current measurement yes
Bluetooth yes
Display (counts) 6,000
μA current measuring range yes
Autom. measurement parameter detection yes
