Description

When measuring electrical parameters such as current, voltage or resistance, you depend on absolutely reliable measuring instruments. The testo 760-1 hands you a digital multimeter which sets new standards in terms of reliability. In comparison to standard multimeters on the market, with the testo 760-1 there is no need to first select the measuring sockets and then the measurement function.
The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings. The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings clearly at a glance.
The testo 760-1 has the most important functions for your daily measuring tasks and is therefore the ideal entry-level instrument in the digital multimeter class.

USPs

• Easy, reliable operation through automatic measurement parameter detection
• Prevents incorrect settings
• Easy, reliable operation through automatic measurement parameter detection
• Clear, illuminated display

Delivery Scope

testo 760-1 multimeter, including batteries, 1 set of measuring cables (0590 0010), calibration protocol and instruction manual.

Downloads

Download DataSheet Instruction Manual

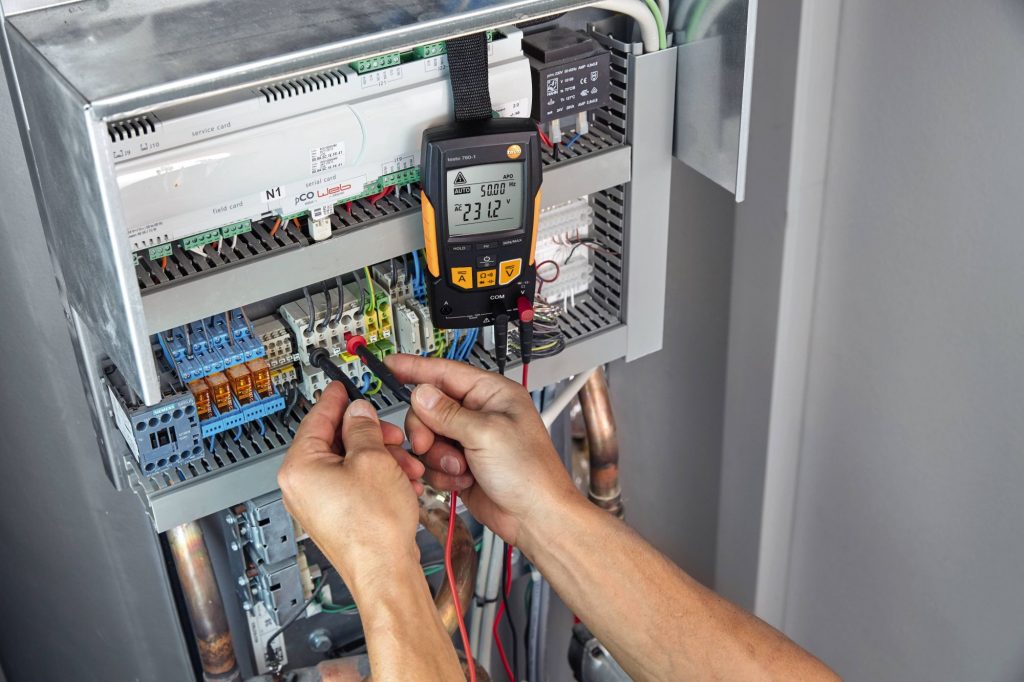

Application Image

Technical Details

DC voltage Measuring range 0.1 to 600 V
Resolution max. 0.1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC voltage Measuring range 0.1 mV to 600 V
Resolution max. 0.1 mV
Accuracy ± (1.0 % of mv + 3 Digit)
DC current Measuring range 0.1 mA to 10 A
Resolution max. 0.1
Accuracy ± (1.5 % of mv + 5 Digit)
AC current Measuring range 0.1 mA to 10 A
Resolution max. 0.1 mA
Accuracy ± (1.0 % of mv + 3 Digit)
Resistance Resolution max. 0.1 Ohm
Measuring range 0.1 to 40.00 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance Resolution max. 0.01 nF
Measuring range 10 nF to 100 μF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency Resolution max. 0.001 Hz
Measuring range 2 Hz to 512.0 kHz
Accuracy ± (0.1 % of mv + 1 Digit)
General technical data Operating humidity 0 to 80 %RH
Weight 340 g
Dimensions 167 x 85 x 45 mm
Operating temperature -10 to +50 °C
Product colour Black
Protection class IP64
Standards EN 61326-1; EN 61010-2-033; EN 61140
Battery type 2 AAA micro batteries
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Interface 4 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT III 600V; CAT IV 300V
Authorizations CSA; CE
Internal_resistance 11 MOhm (AC / DC)
Instrument Measurement Functions Diode test yes
Continuity testing yes
Display ligthing yes
Hold yes
MinMax yes
Display (counts) 4,000
Autom. measurement parameter detection yes
