Description

The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings. It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand.
The large, illuminated display shows the readings clearly. The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors. Temperatures can also be measured with this multimeter in addition to electrical parameters.

USPs

• Easy, reliable work thanks to automatic measurement parameter detection
• Current measurement in the µA range
• Easy, reliable work thanks to automatic measurement parameter detection
• Low-pass filter for accurate measurement results on frequency converter controlled motors

Delivery Scope

testo 760-2 TRMS multimeter, including batteries, 1 set of measuring cables (0590 0010), 1 x adapter for thermocouples type K, calibration protocol and instruction manual.

Downloads

Download DataSheet Instruction Manual

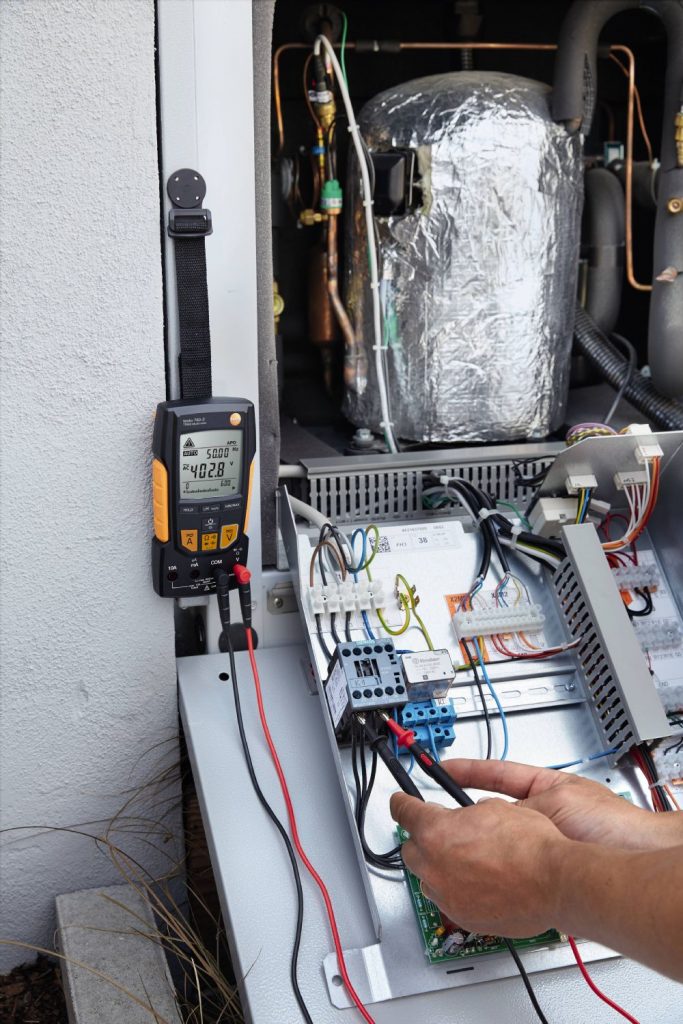

Application Image

Technical Details

Temperature – TC Type K (NiCr-Ni) Measuring range -20 to +500 °C
Accuracy ±1 °C (0 to +100 °C)
Resolution 0.2 °C
DC voltage Measuring range 0.1 to 600 V
Resolution max. 0.1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC voltage Measuring range 0.1 mV to 600 V
Resolution max. 0.1 mV
Accuracy ± (1.0 % of mv + 3 Digit)
DC current Measuring range 0.1 μA to 10 A
Resolution max. 0.1
Accuracy ± (1.5 % of mv + 5 Digit)
AC current Measuring range 0.1 μA to 10 A
Resolution max. 0.1 μA
Accuracy ± (1.5 % of mv + 5 Digit)
Resistance Resolution max. 0.01 Ohm
Measuring range 0.01 to 60.00 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance Resolution max. 0.01 nF
Measuring range 2 nF to 30.00 mF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency Resolution max. 0.1 Hz
Measuring range 2 Hz to 60.00 MHz
Accuracy ± (0.1 % of mv + 1 Digit)
General technical data Operating humidity 0 to 80 %RH
Weight 340 g
Dimensions 167 x 85 x 45 mm
Operating temperature -10 to +50 °C
Product colour Black
Protection class IP64
Standards EN 61326-1; EN 61010-2-033; EN 61140
Battery type 3 AAA micro batteries
Display type LCD (Liquid Crystal Display)
Display size 2 lines
Interface 4 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT III 1000V; CAT IV 600V
Authorizations CSA, CSA, CE
Internal_resistance 11 MOhm (AC / DC)
Instrument Measurement Functions Diode test yes
Continuity testing yes
Current probe measurement with adapter yes
Display ligthing yes
Hold yes
MinMax yes
Temperature measurement with adapter yes
True RMS yes
Low-pass filter yes
Duty cycle measurement yes
Display (counts) 6,000
μA current measuring range yes
Autom. measurement parameter detection yes
