Description

“Ideal for professional flue gas analysis and industrial emissions measurement on industrial engines, burners, gas turbines and in thermal processes: the testo 350 flue gas analyzer performs a variety of measuring and analysis tasks, impresses over the long term thanks to its heavy-duty industrial design and is also suitable for complex data acquisition.

The testo 350 flue gas analyzer comprises two units
The testo 350 Control Unit (separate product) with a clear graphic display, allows you to control emissions measurement. Operation is really easy: burner, gas turbine, engine and user-defined applications are available for selection in the menu. The Control Unit enables remote control of the analyzer unit even when there is a spatial separation of the flue gas pipe and the setting location – particularly recommended for emissions measurements on large plants.
The testo 350 analyzer unit is just what you need for carrying out emissions measurement, because it contains all the sensor technology and electronics. The testo 350 analyzer unit includes an O2 gas sensor as standard, but at least one additional sensor must be connected for commissioning (can be used with a maximum of 6 sensors). When connecting the optional sensors, you can choose between gas sensors for CO, CO2, NO, NO2, SO2, H2S or CxHy.

The measuring range extension enables unrestricted measurements to be carried out, even when there are high gas concentrations. In order to protect the sensor technology, the measuring range extension (dilution) is automatically activated when there are unexpectedly high gas concentrations. The measuring range of a selected sensor can be extended by a specific factor. The service opening on the underside of the instrument allows fast access to all relevant serviceable and wearing parts, such as pumps and filters, enabling users to clean or replace these. In addition, the testo 350 has numerous instrument diagnosis functions. Instrument notifications are output in cleartext, making them easy to understand. The current status of the flue gas analyzer is constantly displayed.”

USPs

• Increased measurement range for unlimited measurements even when gas concentrations are higher
• Easy-to-change gas sensors and easy access to wearing parts
• Increased measurement range for unlimited measurements even when gas concentrations are higher
• Easy operation of the analyzer unit via Control Unit or easyEmission software (both products available separately)

Delivery Scope

testo 350 analyzer unit, equipped with O 2 , including differential pressure sensor, temperature probe input type K NiCr-Ni and type S, Pt10Rh-Pt, Testo data bus connection, rechargeable battery, integrated combustion air probe (NTC), trigger input, measurement data memory, USB interface and carrying strap kit.
Please note: The testo 350 analyzer unit can only be used in combination with the testo 350 Control Unit or the “easyEmission” software. These items are available separately.

Downloads

Download Datasheet Instruction manual

Application Image

Technical Details

Temperature – NTC
Measuring range -20 to +50 °C
Accuracy ±0.2 °C (-10 to +50 °C)
Resolution 0.1 °C (-20 to +50 °C)

Ambient temperature probe Temperature – TC Type K (NiCr-Ni)
Measuring range -200 to +1370 °C
Accuracy ±0.4 °C (-100 to +200 °C), ±1 °C (-200 to -100.1 °C), ±1 °C (200.1 to +1370 °C)
Resolution 0.1 °C (-200 to +1370 °C)

Temperature – TC Type S (Pt10Rh-Pt)
Measuring range 0 to +1760 °C
Accuracy ±1 °C (0 to +1760 °C)
Resolution 0.1 °C (0 to +1760 °C)

Differential Pressure – Piezoresistive
Measuring range -40 to +40 hPa, -200 to +200 hPa
Accuracy ±1.5 % of mv (-40 to -3 hPa), ±1.5 % of mv (+3 to +40 hPa), ±0.03 hPa (-2.99 to +2.99 hPa), ±1.5 % of mv (-200 to -50 hPa), ±1.5 % of mv (+50 to +200 hPa), ±0.5 hPa (-49.9 to +49.9 hPa)
Resolution 0.01 hPa (-40 to +40 hPa), 0.1 hPa (-200 to +200 hPa)

Absolute Pressure
Measuring range 600 to +1150 hPa
Accuracy ±10 hPa
Resolution 1 hPa

Flue gas O₂
Measuring range 0 to +25 Vol.%
Accuracy ±0.8% of fsv (0 to +25 Vol.%)
Resolution 0.01 Vol.% (0 to +25 Vol.%)
Reaction time t₉₀ 20 s (t₉₅)

Flue gas CO (with H₂-compensation)
Measuring range 0 to +10000 ppm
Accuracy ±5 % of mv (+200 to +2000 ppm), ±10 % of mv (+2001 to +10000 ppm), ±10 ppm (0 to +199 ppm)
Resolution 1 ppm (0 to +10000 ppm)
Reaction time t₉₀ 40 s
H₂ only as an indicator

Flue gas COlow Measuring range 0 to 500 ppm
Accuracy ±5 % of mv (+40 to +500 ppm)
±2 ppm (0 to +39.9 ppm)
Resolution 0.1 ppm (0 to +500 ppm)
Reaction time t₉₀ 40 s
H₂ only as an indicator

Flue gas NO
Measuring range 0 to +4000 ppm
Accuracy ±5 % of mv (+100 to +1999 ppm), ±10 % of mv (+2000 to +4000 ppm), ±5 ppm (0 to +99 ppm)
Resolution 1 ppm (0 to +4000 ppm)
Reaction time t₉₀ 30 s

Flue gas Nolow
Measuring range 0 to +300 ppm
Accuracy ±5 % of mv (+40 to +300 ppm), ±2 ppm (0 to +39.9 ppm)
Resolution ±0.1 ppm (0 to +300 ppm)
Reaction time t₉₀ 30 s

Flue gas NO₂
Measuring range 0 to +500 ppm
Accuracy ±5 % of mv (+100 to +500 ppm)
±5 ppm (0 to +99.9 ppm)
Resolution 0.1 ppm (0 to +500 ppm)
Reaction time t₉₀ 40 s

Flue gas SO₂
Measuring range 0 to +5000 ppm
Accuracy ±5 % of mv (+100 to +2000 ppm)
±10 % of mv (+2001 to +5000 ppm)
±5 ppm (0 to +99 ppm)
Resolution 1 ppm (0 to +5000 ppm)
Reaction time t₉₀ 30 s

Flue gas degree of effectivity, Eta (calculated)
Measuring range 0 to +120 %
Resolution 0.1 % (0 to +120 %)

Flue gas loss (calculated)
Measuring range 0 to +99.9 %
Resolution 0.1 % (0 to +99.9 %)

Flue gas dewpoint (calculated)
Measuring range 0 to +99.9 °Ctd
Resolution 0.1 °Ctd (0 to +99.9 °Ctd)

Flue gas CO₂ calculation (calculated from O₂)
Measuring range 0 to CO₂ max
Accuracy calculated from O₂ ±0.2 Vol.%
Resolution 0.01 Vol.%

Flue gas H₂S
Measuring range 0 to +300 ppm
Accuracy ±5 % of mv (+40 to +300 ppm)
±2 ppm (0 to +39.9 ppm)
Resolution 0.1 ppm (0 to +300 ppm)
Reaction time t₉₀ 35 s

Flue gas CO₂ – NDIR
Measuring range 0 to +50 Vol.%
Accuracy ±0.3 Vol.% + 1 % of mv (0 to 25 Vol.%)
±0.5 Vol.% + 1.5 % of mv (>25 to 50 Vol.%)
Resolution 0.01 Vol.% (0 to 25 Vol.%)
0.1 Vol.% (> 25 Vol.%)
Reaction time t₉₀ 10 s

Velocity / Volume flow
Measuring range 0 to +40 m/s
Resolution 0.1 m/s (0 to +40 m/s)

Methane (CH₄)
Measuring range 100 to 40000 ppm
Accuracy 4000 ppm)
Resolution 10 ppm
Min. O₂ requirement in flue gas 2 % + (2 x mV methane)
Reaction time t₉₀
Response factor 1
Lower explosion limit (LEL) must be adhered to. The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

Propane (C₃H₈)
Measuring range 100 to 21000 ppm
Accuracy 4000 ppm)
Resolution 10 ppm
Min. O₂ requirement in flue gas 2 % + (5 x mV propane)
Reaction time t₉₀
Response factor 1.5
Lower explosion limit (LEL) must be adhered to. The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

Butane (C₄H₁₀)
Measuring range 100 to 18000 ppm
Accuracy 4000 ppm)
Resolution 10 ppm
Min. O₂ requirement in flue gas 2 % + (6.5 x mV butane)
Reaction time t₉₀
Response factor 2
Lower explosion limit (LEL) must be adhered to. The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

General technical data
Weight 4800 g
Dimensions 330 x 128 x 438 mm
Operating temperature -5 to +45 °C
Product-/housing material ABS
Protection class IP40
Product colour Black
Connectable probes 1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure
Battery type lithium batteries
Battery life 5 h
Power supply AC mains unit 100V to 240V (50 to 60 Hz)
DC electric tension input
11V to 40V
Dewpoint calculation 0 °Ctd; 99 °Ctd
Max. dust load 20 g/m³ dust in flue gas
Max. neg. press./flue gas -300 mbar
Max. pos. press./flue gas 50 mbar
Trigger input Voltage 5 to 12 Volt (rising or trailing edge) pulse width > 1 sec load: 5 V/max, 5 mA, 12 V/max. 40 mA
Max. humidity load 70 °C dewpoint temperature
Hose length 16.2 m (corresponds to 5 probe hose extensions)
Pump flow 1 l/min. with through-flow monitoring
Maximum memory 250,000 readings
Interface data bus; Bluetooth®; USB; IR/IRDA interface; Mains connection; trigger input; Differential Pressure; probe input/ probe inputs; DC-voltage input; dilution gas inlet for measurement range extension
Storage temperature -20 to +50 °C”

Description

“Precise technology: That’s what you can rely on when you’re working out in the field. But precise technology is nothing if it is not versatile, easy to use and adaptable for use in the field. The testo 340 flue gas analyzer meets all these expectations and much more.

Industrial emission measurement with testo 340 flue gas analyzer
Which sensors do you need in the course of your daily work and which measurements do you normally need to carry out? The testo 340 flue gas analyzer comes standard-fitted with an O2 sensor and four more sensors (CO, COlow, NO, NOlow, NO2 or SO2 ) for you to choose from, allowing you to customize your flue gas analyzer to suit your individual demands.

The analyzer’s compact design and the reliable technology ensure increased mobility, making it ideal for use in on-site service operations and for installing or carrying out checks on firing plants or energy production systems. To find out more about the different application possibilities and to see which industrial applications your testo 340 flue gas analyzer is suitable for, just click on the “Applications” tab.

High gas concentrations? No problem with the flue gas analyzer testo 340!
The flue gas analyzer has an extended measuring range which allows you to carry out measurements even when gas concentrations are very high (i.e. during industrial flue gas analysis). The extended measuring range (thinning) is activated automatically when high gas concentrations suddenly occur. The demands on the sensor are no different to than when the flue gas analyzer is used in low gas concentrations.”

USPs

• Can measure CO, COlow, NO, NOlow, NO2 or SO2
• Extended measuring range for use in environments with high gas concentrations
• Can measure CO, COlow, NO, NOlow, NO2 or SO2
• Integrated pressure difference and air flow measurements for mass flow calculations

Delivery Scope

“testo 340 flue gas analyzer, calibration certificate, shoulder strap, O2 sensor and integrated flow and pressure difference measurements.
Please note that your testo 340 must be fitted with a second gas sensor for it to work. Up to three additional sensors can be fitted.”

Downloads

Download Datasheet Instruction manual

Application Image

Technical Details

Differential Pressure – Piezoresistive
Measuring range -200 to 200 hPa
Accuracy ±0.5 hPa (-49.9 to 49.9 hPa)
±1.5 % of mv (Remaining Range)
Resolution 0.1 hPa

Absolute Pressure
Measuring range +600 to +1150 hPa
Accuracy ±10 hPa
Resolution 1 hPa

Flue gas O₂
Measuring range 0 to 25 Vol.%
Accuracy ±0.2 Vol.%
Resolution 0.01 Vol.%
Reaction time t₉₀
Flue gas CO (with H₂-compensation)
Measuring range 0 to 10000 ppm
Accuracy ±10 ppm or ±10 % of mv (0 to 200 ppm)
±20 ppm or ±5 % of mv (201 to 2000 ppm)
±10 % of mv (2001 to 10000 ppm)
Resolution 1 ppm
Reaction time t₉₀
Flue gas COlow
Measuring range 0 to 500 ppm
Accuracy ±2 ppm (0 to 39.9 ppm)
±5 % of mv (Remaining Range) data corresponds to 20°C ambient temperature. Additional temperature coefficient 0.25% of reading/K.
Resolution 0.1 ppm
Reaction time t₉₀
Flue gas NO
Measuring range 0 to 4000 ppm
Accuracy ±5 ppm (0 to 99 ppm)
±5 % of mv (100 to 1999 ppm)
±10 % of mv (2000 to 4000 ppm)
Resolution 1 ppm
Reaction time t₉₀
Flue gas Nolow
Measuring range 0 to 300 ppm
Accuracy ±2 ppm (0 to 39.9 ppm)
±5 % of mv (Remaining Range)
Resolution 0.1 ppm
Reaction time t₉₀
Flue gas NO₂
Measuring range 0 to 500 ppm
Accuracy ±10 ppm (0 to 199 ppm)
±5 % of mv (Remaining Range)
Resolution 0.1 ppm
Reaction time t₉₀ To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded.

Flue gas SO₂
Measuring range 0 to 5000 ppm
Accuracy ±10 ppm (0 to 99 ppm)
±10 % of mv (Remaining Range)
Resolution 1 ppm
Reaction time t₉₀ To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded.

Differential Pressure flue gas Draught – Piezoresistive
Measuring range -40 to +40 hPa
Accuracy ±0.03 hPa (-2.99 to +2.99 hPa)
±1.5 % of mv (Remaining Range)
Resolution 0.01 hPa

Temperature Measuring range -40 to +1200 °C
Accuracy ±0.5 °C (0 to +99 °C)
±0.5 % of mv (Remaining Range)
Resolution 0.1 °C

Flue gas degree of effectivity, Eta (calculated)
Measuring range 0 to 120 %
Resolution 0.1 %

Flue gas loss (calculated)
Measuring range 0 to 99.9 %
Resolution 0.1 %

Flue gas dewpoint (calculated)
Measuring range 0 to 99.9 °Ctd
Resolution 0.1 °Ctd

Flue gas CO₂ calculation (calculated from O₂)
Measuring range 0 to CO₂ max
Accuracy ±0.2 Vol.%
Resolution 0.1 Vol.%
Reaction time t₉₀
General technical data Weight 960 g
Dimensions 283 x 103 x 65 mm
Operating temperature -5 to +50 °C
Product-/housing material TPE PC
Protection class IP40
Product colour Black
Connectable probes 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure
Battery life > 6h (Pumpe an, Displaybeleuchtung aus, bei 20°C) / > 6h (Pumpe an, Displaybeleuchtung aus, bei 20°C)
Display type graphic Display
Display size 160 x 240 pixels
Display function Graphic display
Power supply Battery block 3.7 V / 2.4 Ah, Mains unit 6.3 V / 2 A
Max. neg. press./flue gas -200 mbar
Max. pos. press./flue gas 50 mbar
User defined fuels 10 user-defined fuels incl. test gas as fuel
Hose length max. 7.8 m (corresponds to two probe hose extensions)
Pump flow 0.6 l/min (regulated)
Maximum memory 100 folders
Storage per folder Max. 10 sites
Storage per site Max. 200 logs
Miscellaneous The max. number of logs is determined by the number of folders or sites
Interface Bluetooth®; USB; IR/IRDA interface; gas outlet; Mains connection; probe input/ probe inputs; Differential Pressure
Storage temperature -20 to +50 °C

Description

“In order to commission and service heating systems as quickly and thoroughly as possible, you need an appropriate flue gas analyzer. A measuring instrument that delivers accurate results, whose probe is firmly secured in the flue gas duct at all times and which can also cope with larger systems or awkward measuring points without difficulty. A measuring instrument like the testo 330i. Embodying the current trends in flue gas analysis
The testo 330i flue gas analyzer combines precision measuring technology with innovative operation. Its H2-compensated CO sensor means that you can also use this version of the testo 330i to carry out official acceptance test measurements on heating systems. At the core of the flue gas analyzer is the technology of the testo 330 LL, which has been proven in practice a thousand times over, with the following features:

•User-replaceable long-life sensors with a service life of up to 6 years. This saves at least one sensor replacement over the instrument’s typical useful life
•TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3
•Integrated draught and gas zeroing without removing the probe – the probe can remain in the flue during zeroing
•Fresh air dilution upon exceeding a CO threshold value up to 30,000 ppm

The instrument’s completely redesigned method of operation is just as significant when it comes to your day-to-day work: operation of the measuring instrument and the display and documentation of readings are implemented wirelessly via the testo 330i App on your smartphone.
The flue gas analyzer is easy to control remotely via Bluetooth, from a distance of up to 5 metres. Also, this means that you always have the system’s flue gas values to hand when needed. Once you have finished the measurement, you can add comments or photos to the protocol and send it to your customer or the office via e-mail. Requirement: iOS 7.1 / Android 4.3 or newer. Mobile end device with Bluetooth 4.0. Work more efficiently with practical accessories We developed the testoFix probe holder so that you no longer have to be concerned about whether the probe is firmly secured in the pipe. This optional accessory can be attached to the flue gas duct quickly and easily, and holds the probe securely in the centre of flow at all times. testoFix also serves as a fall-proof attachment system for the testo 330i flue gas analyzer. However, the measuring instrument also features extra-strong magnets and can therefore be attached to the burner in the usual way.
Incidentally, the hose between probe and flue gas analyzer is somewhat shorter than on previous Testo probes and is particularly flexible, which makes it considerably easier both to work with the measuring instrument and to stow it away in the case.”

USPs

• Paperless documentation and report generation on site via smartphone app
• Operation independent of measuring location via smartphone app
• Paperless documentation and report generation on site via smartphone app
• Completely enclosed plastic housing – particularly robust

Delivery Scope

testo 330i flue gas analyzer with long-life gas sensors, 3 slots and integrated draught and gas zeroing. Includes H2-compensated CO sensor, O2 measuring cell, rechargeable battery and calibration protocol.

Downloads

Download Datasheet Instruction manual

Application Image

Technical Details

Differential Pressure – Piezoresistive
Measuring range 0 to 300 hPa
Accuracy ±0.5 hPa (0.0 to +50.0 hPa)
±1 % of mv (+50.1 to +100.0 hPa)
±1.5 % of mv (Remaining Range)
Resolution 0.1 hPa

Flue gas O₂
Measuring range 0 to 21 Vol.%
Accuracy ±0.2 Vol.%
Resolution 0.1 Vol.%

Flue gas CO (with H₂-compensation)
Measuring range 0 to 8000 ppm
Accuracy ±10 ppm or ±10 % of mv (0 to 200 ppm)
±20 ppm or ±5 % of mv (201 to 2000 ppm)
±10 % of mv (201 to 8000 ppm)
Resolution 1 ppm

CO determination (with H₂-compensation), automatic dilution
Measuring range 0 to 30000 ppm
Accuracy ±200 ppm or ±20 % of mv (0 to 30000 ppm)
Resolution 1 ppm

Flue gas NO
Measuring range 0 to 3000 ppm
Accuracy ±5 ppm (0 to 100 ppm)
±5 % of mv (101 to 2000 ppm)
±10 % of mv (2001 to 3000 ppm)
Resolution 1 ppm
Option

Flue gas Draught
Measuring range -9.99 to +40 hPa
Accuracy ±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa)
±0.03 hPa (+0.61 to +3.00 hPa)
±1.5 % of mv (3.01 to +40.00 hPa) (the greater value applies)
Resolution 0.01 hPa

Temperature
Measuring range -40 to +1200 °C
Accuracy ±0.5 °C (0.0 to +100.0 °C)
±0.5 % of mv (Remaining Range)
Resolution 0.1 °C (-40 to +999.9 °C)
1 °C (Remaining Range)
dependent on the thermocouple in the flue gas probe

Flue gas degree of effectivity, Eta (calculated)
Measuring range 0 to 120 %
Resolution 0.1 %

Flue gas loss (calculated)
Measuring range 0 to 99.9 %
Resolution 0.1 %

Flue gas CO₂ calculation (calculated from O₂)
Measuring range Display range 0 to CO₂ max
Accuracy ±0.2 Vol.%
Resolution 0.1 Vol.%

General technical data
Dimensions 270 x 160 x 57 mm
Operating temperature -5 to +45 °C
Power supply Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional)
System requirements requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Maximum memory 500000 readings
Storage temperature -20 to +50 °C
Weight 720 g (excluding battery)”

Description

Thanks to the new instrument functions, the Testo flue gas analyzers of the new testo 330-LL series now offer you even more professional and reliable support. These are the main features:
• High-resolution colour display for the graphic representation of your measurement data
• Extended measurement menus – such as gas pipe testing – for a comprehensive analysis of your heating system
• Logger function for easy long-term recording of the measurement curve

USPs

• Many measurement menus for analyses on heating systems, incl. solid fuel and gas pipe test menus Integrated sensor monitoring
• 4 years‘ warranty without maintenance contract
• Dilution up to 30,000 ppm CO (testo 330-2 LL)
• Zeroing in flue possible (testo 320-2 LL)
• High-resolution colour graphic display
• Logger function (up to 2h continuous measurement value recording)
• TÜV-tested according to EN50379, Parts 1-3″

Delivery Scope

testo 330-2 LL flue gas analyzer, O2/CO sensor, rechargeable battery, calibration protocol

Downloads

Download DataSheet Instruction Manual

Application Image

Technical Details

Temperature
Measuring range -40 to +1200 °C
Accuracy ±0.5 °C (0 to +100.0 °C)
±0.5 % of mv (Remaining Range)
Resolution 0.1 °C (-40 to +999.9 °C)
1 °C (> +1000 °C)

General technical data
Dimensions 270 x 90 x 65 mm
Operating temperature -5 to +45 °C
Display size 240 x 320 pixels
Display function Colour graphic display
Power supply Rechargeable battery pack 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A
Maximum memory 500,000 readings
Storage temperature -20 to +50 °C
Weight 600 g (without rechargeable battery)

Description

“The testo 320 flue gas analyzer is a trusty and reliable companion for all those people who specialise in installing, inspecting and servicing heating systems. The high-quality, professional all-rounder is easy to use and allows you to carry out all measurements in and around heating systems with only one device. The testo 320’s special rugged design means that it is excellently equipped to stand up to the rough and tumble of daily use.
A set of easy-to-follow, self-explanatory, country-specific menus guide you safely through all the measurements. The readings are all presented graphically on a high-resolution, crisp color display for use in all lighting conditions. The user-friendly analyzer also has a memory for up to 500 readings.
Moreover the flue gas analyzer is TÜV-tested according to EN 50379, Parts 1-3 and 1 st BImSchV.

The testo 320 flue gas analyzer – facts and features
The testo 320 flue analyzer comes with one sensor for O 2 and additionally you can order a CO sensor (separate product). The flue gas analyzer then calculates the relevant flue gas values, i.e. CO 2 value, efficiency and flue gas loss.
There is also wide range of optional sensors for you to choose from. These include multiple-hole, edge crack and flexible flue gas sensors as well as an ultra-fine flue gas pressure sensor which allows you to perform draft and gas pressure measurements parallel to the other measurements.

Areas of application for the testo 320 flue gas analyzer
Six applications. One device:

• flue gas measurements
• flue draft measurements
• gas flow and static gas pressure
• gas leak detection
• CO ambient air measurements
• temperature difference measurements

Allows you to monitor and check heating environments, radiators and burners easily and reliably.”

USPs

• High-resolution colour graphic display with quick and easy menu structure
• Storage space for 500 measurement values
• Measurement of flue gas, draught, pressure, ambient CO, differential temperature and gas leak detection
• O2 and CO sensor and flue gas probe with temperature probe
• TÜV-tested according to EN 50379, Parts 1-3″

Delivery Scope

testo 320 flue gas analyzer, O2 sensor

Downloads

Download DataSheetInstruction Manual

Application Image

Technical Details

Temperature
Measuring range -40 to +1200 °C
Accuracy ±0.5 °C (0 to +100.0 °C)
±0.5 % of mv (Remaining Range)
Resolution 0.1 °C (-40 to +999.9 °C)
1 °C (> +1000 °C)

Pressure measurement
Measuring range 0 to +300 hPa
Accuracy ±0.5 hPa (0.0 to 50.0 hPa)
±1 % of mv (50.1 to 100.0 hPa)
±1.5 % of mv (Remaining Range)
Resolution 0.1 hPa with fine draught option 0.01 hPa

General technical data
Dimensions 240 x 85 x 65 mm
Operating temperature -5 to +45 °C
Display size 240 x 320 pixels
Display function Colour graphic display
Power supply Battery: 3.7 V / 2,400 mAh; Mains unit: 6 V / 1.2 A
Maximum memory 500 Measurement values
Storage temperature -20 to +50 °C
Weight 573 g

Description

“Accurate readings, rugged design, easy-to-use: And that’s exactly what you get with the testo 310 Combustion analyzer. You can carry out quick and reliable checks on combustion and heating systems.
The testo 310 entry-level Combustion analyzer for reliable combustion system checks
The testo 310 combustion analyzer has an easy-to-use menu guide, four integrated menus for flue gas, draft, CO ambient air and pressure measurements, a large, easy-to-read display and a backlight for use in all lighting conditions.
But that is not all. The compact combustion analyzer has a wide range of useful features that make it the ideal companion for combustion and heating systems checks. Thanks to the built-in magnet, it can stick to almost any metal object, like a burner for example, leaving both hands free for other tasks. The sensor can be zeroed in as little as 30 seconds and the sensor filter is just as easy to replace. In addition to that, the device has a rugged design which protects it against impact and damage and an easy-to-empty condensate collection tank.
The readings can also be transferred directly to your testo turbo printer (optional) via the combustion analyzer’s infrared interface, allowing you to print out on site.”

USPs

• Direct O2, CO, flue gas and ambient temperature measurements
• Integrated measurement menu for flue gas, draft, CO ambient airand pressure
• Direct O2, CO, flue gas and ambient temperature measurements

  arge, backlit digital display, rechargeable lithium battery with up to 10 hours life

Delivery Scope

testo 310 incl. battery and calibration protocol for the measurement of O2, CO, hPa and °C; probe 180 mm with cone; case; mains unit incl. cable; silicon hose for pressure measurement; particle filter 5 off.

Downloads

Download Datasheet Instruction manual

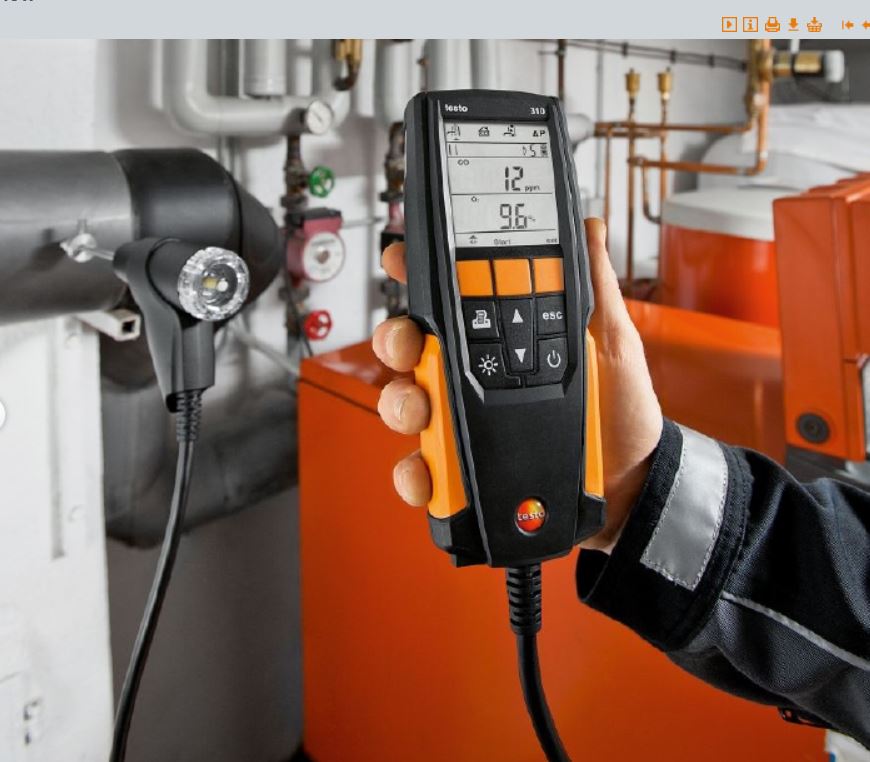

Application Image

Technical Details

Temperature – TC Type K (NiCr-Ni)
Measuring range -20 to +100 °C
Accuracy ±1 °C
Resolution 0.1 °C
Reaction time Temperature (ambient temperature)

Temperature – TC Type J (Fe-CuNi)
Measuring range 0 to +400 °C
Accuracy ±1 °C (0 to +100 °C)
±1.5 % of mv (> 100 °C)
Resolution 0.1 °C
Reaction time Temperature (flue gas)

Flue gas O₂
Measuring range 0 to 21 Vol.%
Accuracy ±0.2 Vol.%
Resolution 0.1 Vol.%
Reaction time t₉₀ 30 s

Flue gas Draught
Measuring range -20 to +20 hPa
Accuracy ±0.03 hPa (-3.00 to +3.00 hPa)
±1.5 % of mv (Remaining Range)
Resolution 0.01 hPa

Flue gas degree of effectivity, Eta (calculated)
Measuring range 0 to 120 %
Resolution 0.1 %

Flue gas loss (calculated)
Measuring range 0 to 99.9 %
Resolution 0.1 %

Flue gas CO₂ calculation (calculated from O₂)
Measuring range 0 to CO₂ max (Display range)
Accuracy ±0.2 Vol.%
Resolution 0.1 Vol.%
Reaction time t₉₀
Pressure measurement
Measuring range -40 to +40 hPa
Accuracy ±0.5 hPa
Resolution 0.1 hPa

Flue gas CO (without H₂-compensation)
Measuring range 0 to 4000 ppm
Accuracy ±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
±10 % of mv (2001 to 4000 ppm)
Resolution 1 ppm
Reaction time t₉₀ 60 s

Ambient CO
Measuring range 0 to 4000 ppm
Accuracy ±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
±10 % of mv (2001 to 4000 ppm)
Resolution 1 ppm
Reaction time 60 s

General technical data Dimensions 201 x 83 x 44 mm
Operating temperature -5 to +45 °C
Display type LCD
Display function Backlit 2-line display
Power supply Battery: 1500 mAh, mains unit 5V/1A
Storage temperature -20 to +50 °C
Weight (with probe) Approx. 700 g

Description

Truly smart flue gas measurement on heating systems with the testo 300 flue gas analyzer. High-quality sensors, intuitive operation with smart-touch technology and smart features, such as efficient documentation and e-mailing of reports, will make your day-to-day work easier. testo 300 flue gas analyzer with smart-touch operation – Features Impressive measuring technology and quality O 2 sensor and CO sensor up to 4,000 ppm Longer sensor service life thanks to automatic sensor protection.
TÜV-tested according to first German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3 Integrated fine pressure Versatile probes and fast probe changes: take advantage of quick-change probes and the multi-functional handle for attaching a variety of probe shafts (each available to order separately). You can for instance use longer probe shafts for flue gas pipes with larger diameters or flexible probes for difficult-to-access measuring points Optionally available probes and accessories for further measuring tasks, such as gas flow pressure measurement, gas pipe testing, differential temperature measurement and ambient CO measurement.
Smart, intuitive, efficient: easy operation in day-to-day work Smart-touch display for intuitive operation of the flue gas analyzer: the display responds without delay – just as easy as on your smartphone Get the measurement result faster: clearly structured measurement menus for all relevant measurements Create documentation (including measuring value, measuring location, customer data) easily on site Save PDF measurement reports directly in the instrument and always have them available Signature function: your customer can sign measurement reports directly on the instrument E-mail measurement reports directly to the office or to customers via WLAN (hotspot) Large 5-inch HD display – enables you to see all the system’s parameters immediately Testo interface function for direct data transfer of measuring values to industry/customer-specific software* Ready to use straight away: in standby mode, the testo 300 is ready to measure at the touch of a button.
Use it straight away with the next customer – because you no longer need to wait for the end of the zeroing phase Integrated Bluetooth ® interface: immediate printout of the measuring values on site with the appropriate printer *Note: the manufacturer has to integrate an interface into the industry software to use the function Other advantages 10-hour rechargeable battery life: an average measurement period of 2 hours means the flue gas analyzer is capable of being used for one week Integrated, extra-strong magnets for easy fixing during the measuring process

USPs

• Intuitive measurement menus and the fast-response Smart-Touch display ensure easy operation – as on your smartphone
• Including O 2 and CO sensor up to 4,000 ppm
• Intuitive measurement menus and the fast-response Smart-Touch display ensure easy operation – as on your smartphone
• Creation of documentation directly on site and e-mailing of reports

Delivery Scope

testo 300 flue gas analyzer with O 2 and CO sensor up to 4,000 ppm, USB mains unit

Downloads

Download Datasheet Instruction manual

Application Image

Technical Details

Temperature – TC Type K (NiCr-Ni)
Measuring range -40 to +1200 °C
Accuracy ±0.5 °C (0.0 to +100.0 °C)
±0.5 % of mv (Remaining Range)
Resolution 0.1 °C (-40 to +999.9 °C)
1 °C (Remaining Range)

Differential Pressure – Piezoresistive
Measuring range -100 to +200 hPa
Accuracy ±0.5 hPa (0 to +50.0 hPa)
±1 % of mv (+50.1 to +100.0 hPa)
±1.5 % of mv (+100.1 to +200 hPa)
Resolution 0.01 hPa

Flue gas O₂
Measuring range 0 to 21 Vol.%
Accuracy ±0.2 Vol.%
Resolution 0.1 Vol.%

Differential Pressure flue gas Draught – Piezoresistive
Measuring range -9.99 to +40 hPa
Accuracy ±0.005 hPa (+0 to +0.1 hPa)
±0.02 hPa (+0.1 to +3.00 hPa)
±1.5 % of mv (3.01 to +40 hPa)
Resolution 0.001 hPa (0 to 0.1 hPa)
0.01 hPa (Remaining Range)

Flue gas degree of effectivity, Eta (calculated)
Measuring range 0 to 120 %
Resolution 0.1 %

Flue gas loss (calculated)
Measuring range 0 to 99.9 %
Resolution 0.1 %

Flue gas CO₂ calculation (calculated from O₂)
Measuring range Display range 0 to CO₂ max
Accuracy ±0.2 Vol.%
Resolution 0.1 Vol.%

Flue gas CO (without H₂-compensation)
Measuring range 0 to 4000 ppm
Accuracy ±20 ppm (0 to 400 ppm)
±5 % of mv (401 to 2000 ppm)
±10 % of mv (2001 to 4000 ppm)
Resolution 1 ppm

Ambient CO
Measuring range 0 to 2000 ppm
Accuracy ±10 ppm (0 to 100 ppm)
±10 % of mv (101 to 2000 ppm)
Resolution 1 ppm

General technical data
Operating humidity 15 to 90 %RH non-condensing
Dimensions 244 (including probe connection) x 98 x 59 LxWxH
Operating temperature -5 to +45 °C
Protection class IP40
Product colour black/orange
Display type 5.0″” touch display, HD 1280*720 pixels, IPS (160 k)
Power supply Rechargeable battery, USB mains unit
Guarantee Gas sensors (O₂, CO) 24 months; rechargeable battery: 12 months; Thermocouple 12 months
Authorizations TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
Warranty conditions https://www.testo.com/guarantee
Memory 1,000,000 measuring values
Storage battery type Lithium ion battery
Battery life 10 h
Storage temperature -20 to +50 °C
Weight approximately 800 g
Charging temperature 0 to +45 °C

Differential Pressure 4 Pa measurement – Piezoresistive
Measuring Range -50 to +50 Pa
Accuracy ±0.3 Pa (< 10 Pa) ±3 % of mv (Remaining Range) Resolution 0.1 Pa
